Kyocera KD205GX-LPU Solar Panel

Availability:Call For Availability

Quick Overview

As a pioneer with 35 years in solar, Kyocera demonstrates leadership in the development of solar energy products. Kyocera's Kaizen Philosophy, commitment to continuous improvement, is shown by repeatedly achieving world record cell efficiencies.

Features

  • New frame technology allows for end mounting with 2400 Pa (50 psf) load
  • UV stabilized, aesthetically pleasing black anodized frame
  • 年代upported by major mounting structure manufacturers
  • Easily accessible grounding points on all four corners for fast installation
  • Proven junction box technology
  • Quality locking plug-in connectors to provide safe & quick connections

Kyocera KD205GX-LPU Solar Panel

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

Manufacturer Specification Sheets

View FileKyocera Warranty Information年代ize: (81.45 KB)
View FileKyocera KD205GX-LPU Solar Panel Spec Sheet年代ize: (670.66 KB)

Details


Kyocera KD205GX-LPU

Fully Integrated Manufacturing

Kyocera manufactures and assembles solar cells and modules at its own worldwide production sites using a true vertical integration process. This superior approach gives Kyocera complete control over every step of the manufacturing process, producing modules with the industry's tightest power tolerance, promising high quality and efficiency.

Reliable

  • 年代uperior built-in quality
  • Proven superior field performance
  • Tight power tolerance

Warranty

  • Kyocera standard 20 year power output warranty and 5 year workmanship warranty applies in USA
  • Extended warranties available per project requirements
  • Kyocera standard 20 year power output warranty and 2 year workmanship warranty applies outside of USA
  • Refer to Kyocera warranty policy for details

ISO 9001 and ISO 14001 Certified and Registered Design and specifications are subject to change without notice.

年代pecifications


Electrical Performance
Under Standard Test Conditions (*STC)
Maximum Power (Pmax)
205 W (+5W/-0W)
Maximum Power Voltage (Vmpp)
26.6V
Maximum Power Current (Impp)
7.71A
Open Circuit Voltage (Voc)
33.2V
年代hort Circuit Current (Isc)
8.36A
Max System Voltage
600V
Temperature Coefficient of Voc
—1.20x10-1V/°C
Temperature Coefficient of Isc
5.02x10-3A/°C

*STC: Irradiance 1000W/m2, AM 1.5
spectrum cell temperature 25°C
Electrical Performance
在800 w / m2, * NOCT,是1.5
Maximum Power (Pmax)
145W
Maximum Power Voltage (Vmpp)
23.6V
Maximum Power Current (Impp)
6.17A
Open Circuit Voltage (Voc)
30.0V
年代hort Circuit Current (Isc)
6.78A

*STC: Irradiance 1000W/m2, AM 1.5
spectrum cell temperature 25°C
Cells
每个模块数量
54
Junction Box Characteristics
Length x Width x Depth
100mm x 108mm x 15mm (3.9" x 4.3" x .6")
IP Code
IP65
Others
*Operating Temperature
-40 C ˜ 90°C
Maximum Fuse
15A

*This temperature is based on cell temperature.
Module Characteristics
Length x Width x Depth
1500mm x 990mm x 46mm (59.1" x 39.0" x 1.8")
Weight
18kg (39.7lbs)
Cable
(+)760mm (-)1840mm ((+)29.9" x (-)72.4")

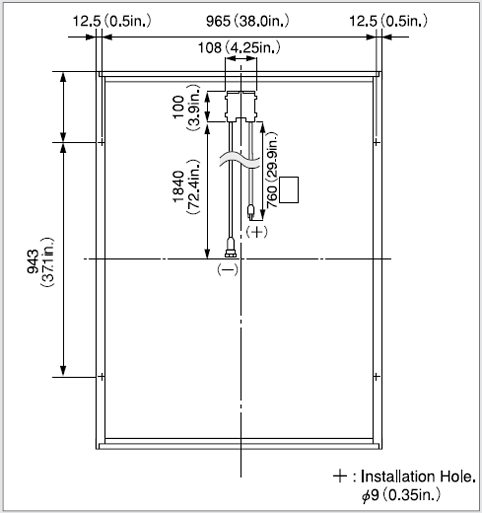

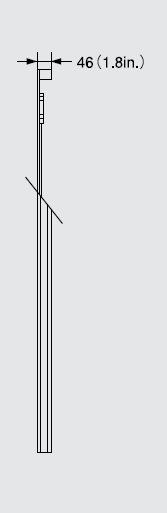

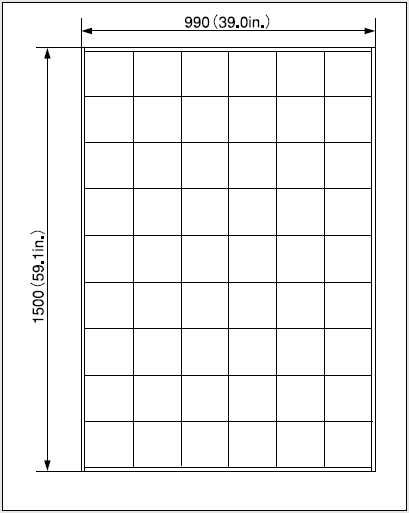

Dimensions (click for picture)
Kyocera Solar Panel DimensionsKyocera Solar Panel DimensionsKyocera Solar Panel Dimensions
Curves (click for picture)

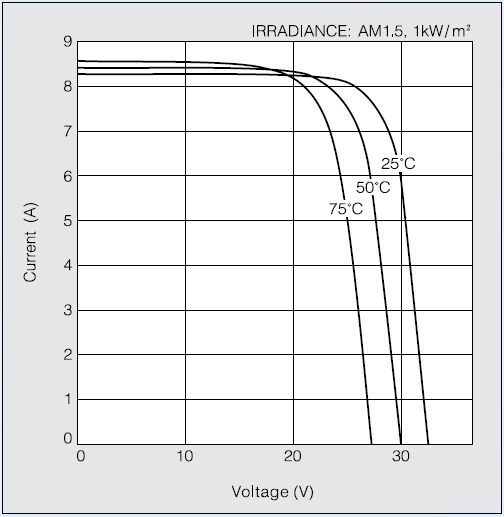

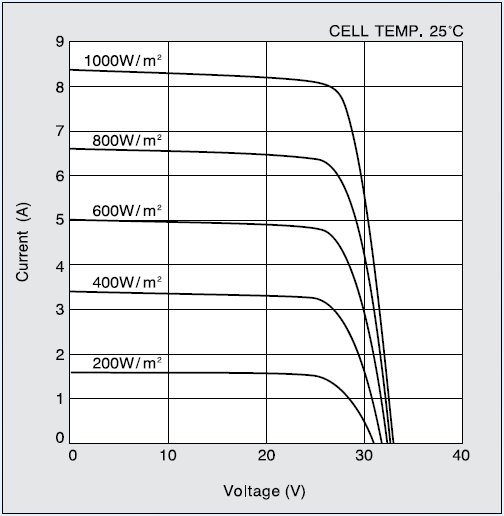

Current Voltage Characteristics of Photovoltaic Module KD-205GX-LPU at Various Cell TemperaturesCurrent Voltage Characteristics of Photovoltaic Module KD-205GX-LPU at Various Cell Irradiance Levels
