Kyocera KD215GX-LPU Solar Panels

Availability:Call For Availability

Quick Overview

CUTTING EDGE TECHNOLOGY
As a pioneer with 35 years in solar, Kyocera demonstrates leadership in the development of solar energy products.
Kyocera’s Kaizen Philosophy, commitment to continuous improvement, is shown by repeatedly achieving world record cell efficiencies.

Features

  • New frame technology allows for end mounting with 2400 Pa (50 psf) or wind speeds of 130 mph (ASTM E1830) and traditional mounting under 5400 Pa (113 psf) to support increased snow load
  • UV stabilized, aesthetically pleasing black anodized frame
  • Supported by major mounting structure manufacturers
  • Easily accessible grounding points on all four corners for fast installation
  • Proven junction box technology
  • 质量锁插件连接器提供安全& quick connections

Kyocera KD215GX-LPU Solar Panels

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

Specifications

Model Number KD215GX-LPU
STC Rating 215.0
PTC Rating 194.4
Open Circuit Voltage (V) 33.2
Short Circuit Current (A) 8.78
Frame Color Black
起源 US/Mexico
功率%± 0/5
(W/ft²) 13.44
Area (ft²) 16.3
Weight (lbs) 40.8
Length (in) 59.10
Width (in) 39.00
Height (in) 1.40

Manufacturer Specification Sheets

View FileKyocera Warranty InformationSize: (81.45 KB)
View FileKD215GX-LPU Data SheetSize: (898.75 KB)

Details

Cutting Edge Technology

As a pioneer with 35 years in solar, Kyocera demonstrates leadership in the development of solar energy products. Kyocera's Kaizen Philosophy, commitment to continuous improvement, is shown by repeatedly achieving world record cell efficiencies.

Quality Built In

  • New frame technology allows for end mounting with 2400 Pa (50 psf) load
  • UV stabilized, aesthetically pleasing black anodized frame
  • Supported by major mounting structure manufacturers
  • Easily accessible grounding points on all four corners for fast installation
  • Proven junction box technology
  • 质量锁插件连接器提供安全& quick connections

Fully Integrated Manufacturing

Kyocera manufactures and assembles solar cells and modules at its own worldwide production sites using a true vertical integration process. This superior approach gives Kyocera complete control over every step of the manufacturing process, producing modules with the industry's tightest power tolerance, promising high quality and efficiency.

Reliable

  • Superior built-in quality
  • Proven superior field performance
  • Tight power tolerance

Warranty

  • Kyocera standard 20 year power output warranty and 5 year workmanship warranty applies in USA
  • Extended warranties available per project requirements
  • Kyocera standard 20 year power output warranty and 2 year workmanship warranty applies outside of USA
  • Refer to Kyocera warranty policy for details

*ISO 9001 and ISO 14001 Certified and Registered Design and specifications are subject to change without notice.

Specifications

Electrical Performance
Under Standard Test Conditions (*STC)
Maximum Power (Pmax)
215 W (+5W/-0W)
Maximum Power Voltage (Vmpp)
26.6V
Maximum Power Current (Impp)
8.09A
Open Circuit Voltage (Voc)
33.2V
Short Circuit Current (Isc)
8.78A
Max System Voltage
600V
Temperature Coefficient of Voc
�1.20x10-1V/°C
Temperature Coefficient of Isc
5.27x10-3A/°C

*STC: Irradiance 1000W/m2, AM 1.5
spectrum cell temperature 25°C

Electrical Performance
在800 w / m2, *NOCT, AM 1.5
Maximum Power (Pmax)
152W
Maximum Power Voltage (Vmpp)
23.6V
Maximum Power Current (Impp)
6.47A
Open Circuit Voltage (Voc)
30.0V
Short Circuit Current (Isc)
7.12A

*STC: Irradiance 1000W/m2, AM 1.5
spectrum cell temperature 25°C

Junction Box Characteristics
Length x Width x Depth
100mm x 108mm x 15mm (3.9" x 4.3" x .6")
IP Code
IP65
Module Characteristics
Length x Width x Depth
1500mm x 990mm x 46mm (59.1" x 39.0" x 1.8")
Weight
18kg (39.7lbs)
Cable
(+)760mm (-)1840mm ((+)29.9" x (-)72.4")
Others
*Operating Temperature
-40 C ½ 90°C
Maximum Fuse
15A

*This temperature is based on cell temperature.

Cells
每个模块数量
54

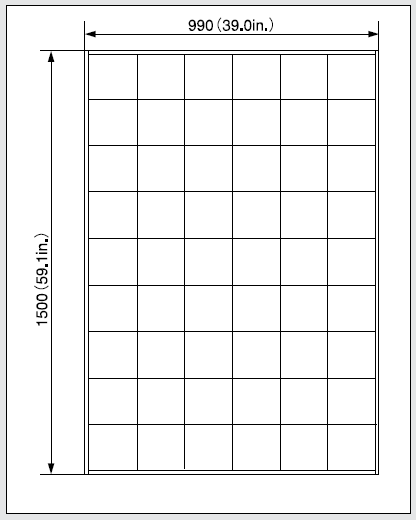

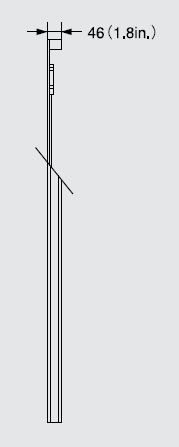

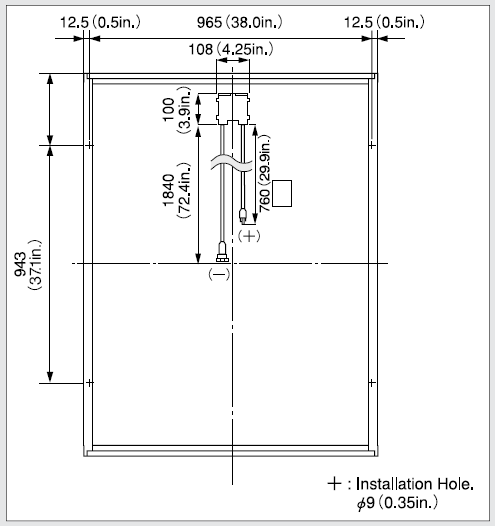

Dimensions (click for picture)
Kyocera Solar Panel KD-215GX-LPU DimensionsKyocera Solar Panel KD-215GX-LPU DimensionsKyocera Solar Panel KD-215GX-LPU Dimensions
Curves (click for picture)

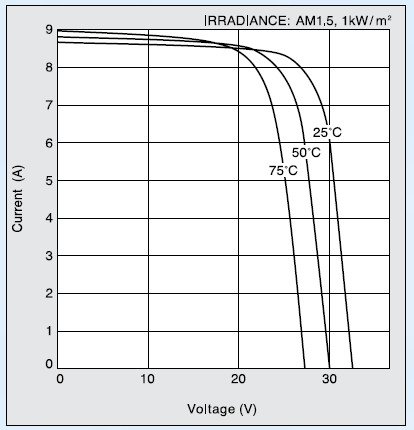

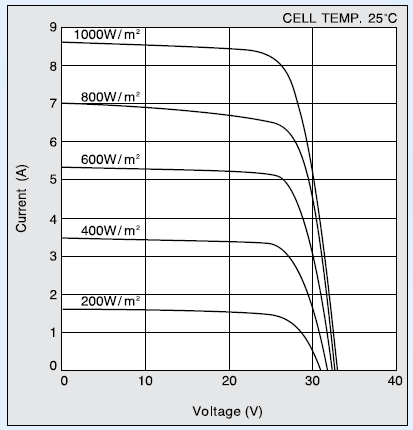

Current Voltage Characteristics of Photovoltaic Module KD-215GX-LPU at Various Cell TemperaturesCurrent Voltage Characteristics of Photovoltaic Module KD-215GX-LPU at Various Cell Irradiance Levels
